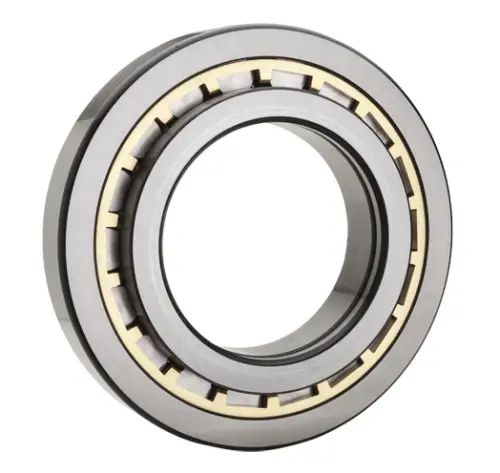

NTN NH2313E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
287000 N
Dynamic Load Rating
248000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

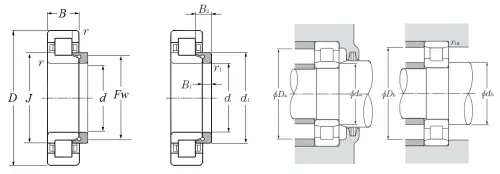

Dimensional Specifications
d
65.000 mm
D
140.000 mm
B
48.000 mm
Fw
82.500 mm
d1
91.000 mm
B1
10.000 mm
B2
18.000 mm
J
91.000 mm
r
2.100 mm
r1
2.100 mm
da min
76.000 mm
Da max
129.000 mm
