NTN NH411AL1C4NA
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C4NA
Static Load Rating
126000 N
Dynamic Load Rating
910000 N
Enclosure
Open
Weight
3.062 kg
Operating Temperature Range
-40 to 120 ºC

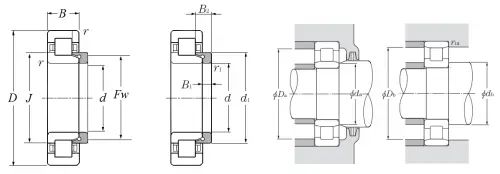

Dimensional Specifications
d
55.000 mm
D
140.000 mm
B
33.000 mm
Fw
77.200 mm
d1
85.200 mm
B1
10.000 mm
B2
16.500 mm
J
85.200 mm
r
3.500 mm
r1
2.100 mm
