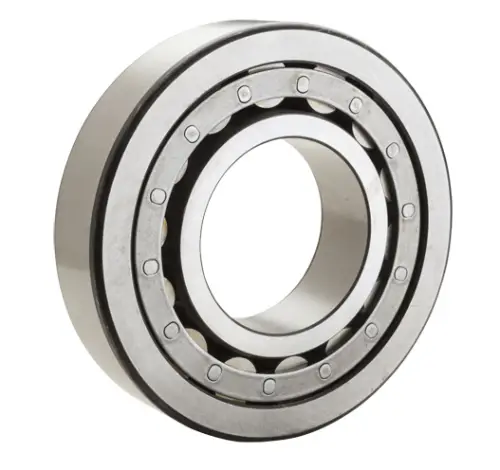

NTN NJ1006
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
14000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
19600 N
Dynamic Load Rating
19700 N
Enclosure
Open
Weight
0.130 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
55.000 mm
B
13.000 mm
Fw
36.500 mm
J
38.900 mm
r
0.600 mm
da min
34.000 mm
db min
35.000 mm
Da max
50.000 mm
Db max
51.000 mm
Db min
49.500 mm
r1as max
0.600 mm
