NTN NJ1010
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
8900 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
36000 N
Dynamic Load Rating
32000 N
Enclosure
Open
Weight
0.295 kg
Operating Temperature Range
-40 to 120 ºC

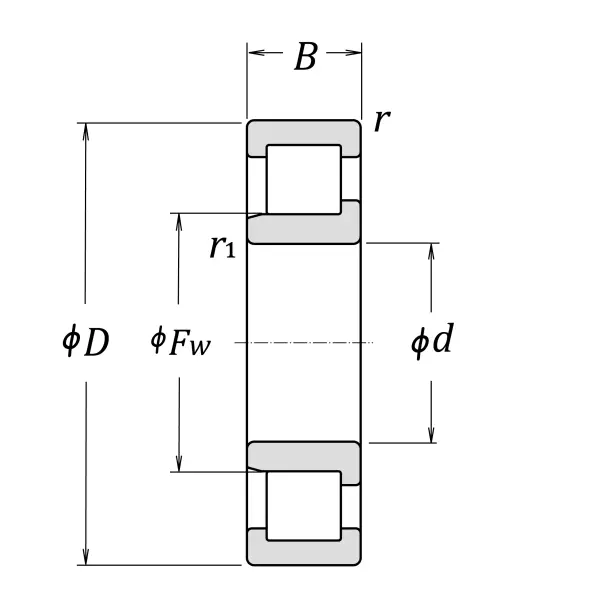

Dimensional Specifications
d
50.000 mm
D
80.000 mm
B
16.000 mm
Fw
57.500 mm
J
60.500 mm
r
1.000 mm
da min
54.000 mm
db min
55.000 mm
Da max
75.000 mm
Db max
76.000 mm
Db min
73.500 mm
r1as max
0.600 mm
