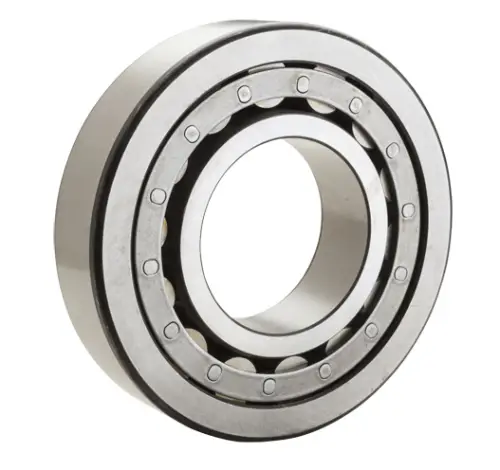

NTN NJ306
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Outside Ring Type
Two Ribbed Outer Ring
Material
Hardened Alloy Steel
Cage Material
Pressed Steel
Limiting Speed - Oil
12000 RPM
Limiting Speed - Grease
10000 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
50000 N
Dynamic Load Rating
53000 N
Enclosure
Open
Weight
0.362 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
72.000 mm
B
19.000 mm
Fw
42.000 mm
J
45.900 mm
r
1.000 mm
da min
36.500 mm
Da max
65.500 mm
r1as max
1.100 mm
