NTN NJ310ET2XC3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
6900 RPM
Limiting Speed - Grease
5900 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
113000 N
Dynamic Load Rating
110000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

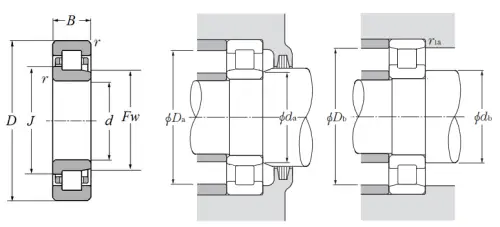

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
27.000 mm
Fw
65.000 mm
J
71.400 mm
r
2.000 mm
da min
59.000 mm
Da max
101.000 mm
r1as max
2.000 mm
