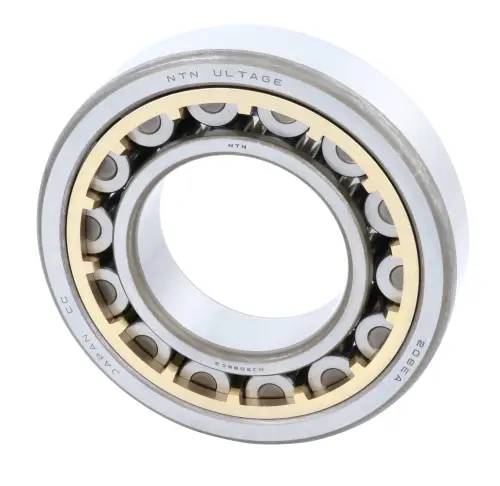

NTN NJ313EG1C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Outside Ring Type
Two Ribbed Outer Ring
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
5400 RPM
Limiting Speed - Grease
4600 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
191000 N
Dynamic Load Rating
181000 N
Enclosure
Open
Weight
2.534 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
65.000 mm
D
140.000 mm
B
33.000 mm
Fw
83.500 mm
J
91.000 mm
r
2.000 mm
da min
76.000 mm
Da max
129.000 mm
r1as max
2.000 mm
