NTN NU1008
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Machined Carbon Steel
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
11000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
29000 N
Dynamic Load Rating
27300 N
Enclosure
Open
Weight
0.220 kg
Operating Temperature Range
-40 to 120 ºC

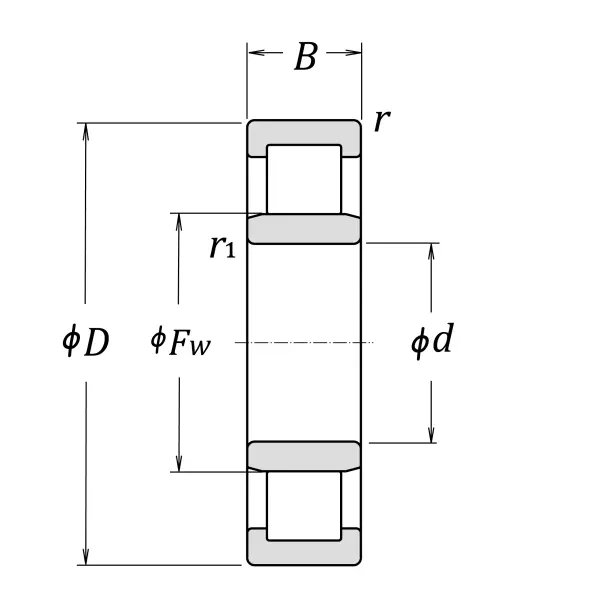

Dimensional Specifications
d
40.000 mm
D
68.000 mm
B
15.000 mm
Fw
47.000 mm
r
1.000 mm

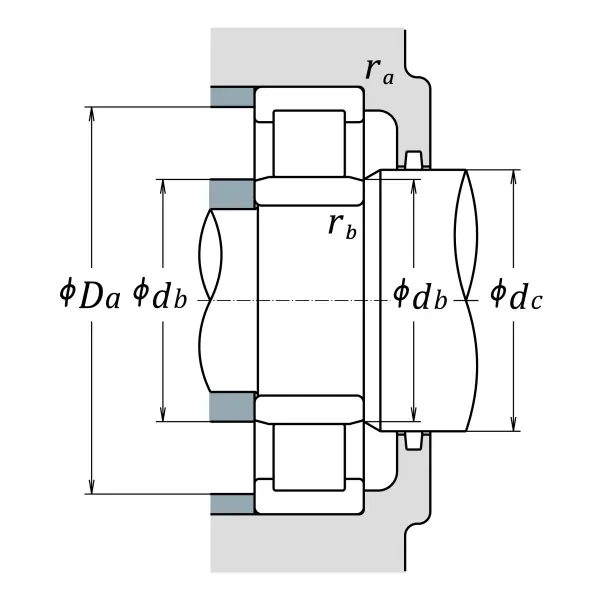

da min
44.000 mm
db min
45.000 mm
Da max
63.000 mm
Db max
64.000 mm
r1as max
0.600 mm
