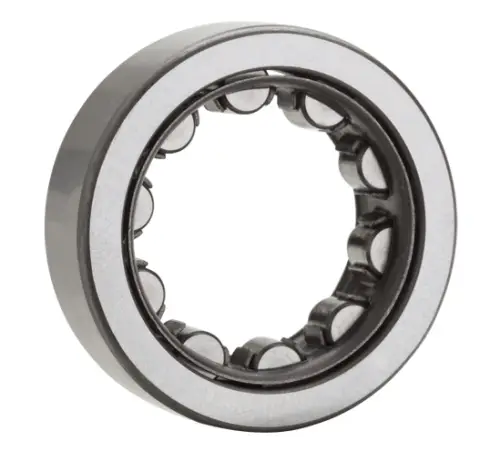

NTN NU206E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
13000 RPM
Limiting Speed - Grease
11000 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
37500 N
Dynamic Load Rating
39000 N
Enclosure
Open
Weight
0.226 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
Fw
37.500 mm
r
1.000 mm
da min
34.000 mm
Da max
57.000 mm
r1as max
0.600 mm
