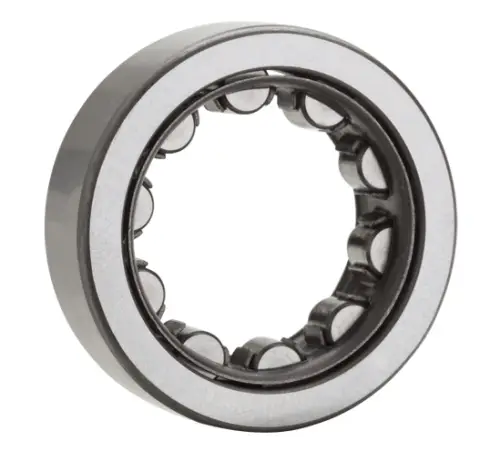

NTN NU308G1C3
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
9400 RPM
Limiting Speed - Grease
8000 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C3
Static Load Rating
57000 N
Dynamic Load Rating
58500 N
Enclosure
Open
Weight
0.692 kg
Operating Temperature Range
-40 to 120 ºC

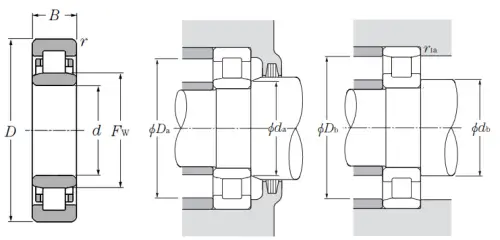

Dimensional Specifications
d
40.000 mm
D
90.000 mm
B
23.000 mm
Fw
53.500 mm
r
1.500 mm
da min
48.000 mm
db min
48.000 mm
Da max
82.000 mm
Db max
82.000 mm
r1as max
1.500 mm
