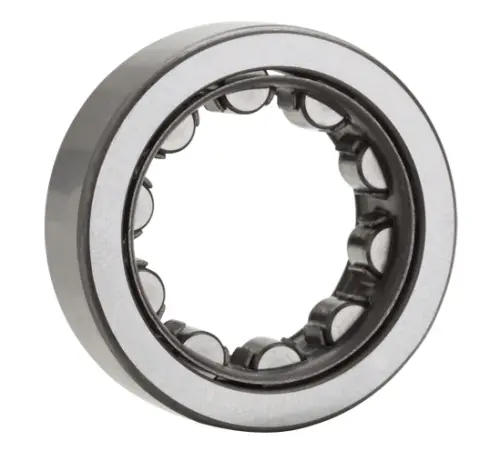

NTN NU309EG1
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
7600 RPM
Limiting Speed - Grease
6500 RPM
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
98500 N
Dynamic Load Rating
97500 N
Enclosure
Open
Weight
0.930 kg
Operating Temperature Range
-40 to 120 ºC

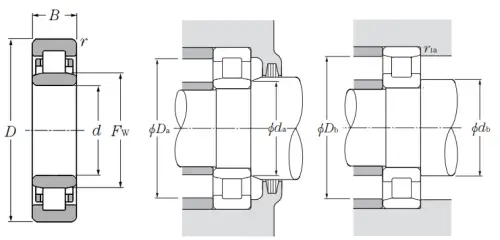

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
25.000 mm
Fw
58.500 mm
r
1.500 mm
da min
53.000 mm
Da max
92.000 mm
r1as max
1.500 mm
