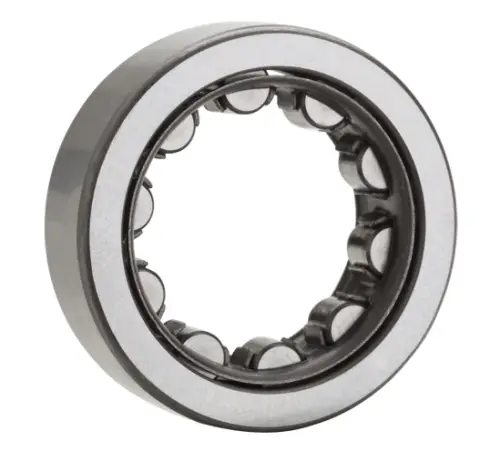

NTN NU411L1C4
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength, 2 piece, Machined Brass
Limiting Speed - Oil
5000 RPM
Limiting Speed - Grease
4300 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
C4
Static Load Rating
138000 N
Dynamic Load Rating
139000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

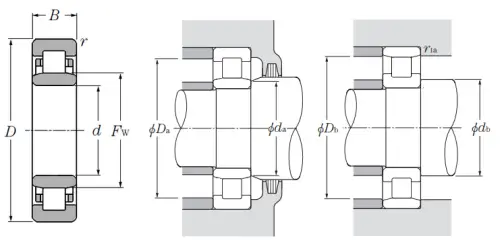

Dimensional Specifications
d
55.000 mm
D
140.000 mm
B
33.000 mm
Fw
77.200 mm
r
2.100 mm
r1as max
2.000 mm
