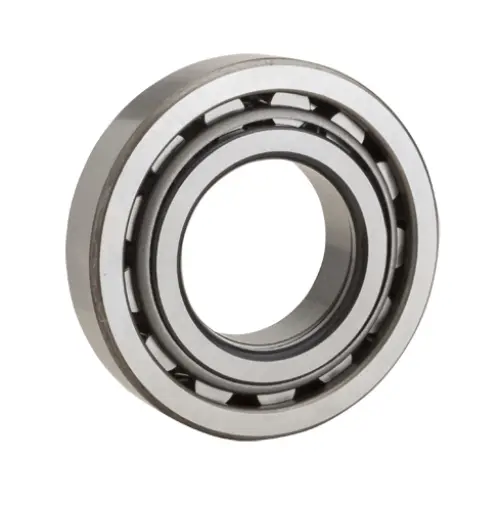

NTN NUP2210E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
7300 RPM
Limiting Speed - Grease
6200 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
91500 N
Dynamic Load Rating
79500 N
Enclosure
Open
Weight
0.652 kg
Operating Temperature Range
-40 to 120 ºC

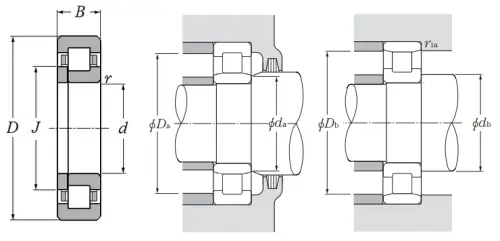

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
23.000 mm
J
63.900 mm
r
1.100 mm
da min
56.500 mm
Da max
83.500 mm
r1as max
1.000 mm
