NTN NUP2310E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
6100 RPM
Limiting Speed - Grease
5200 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
187000 N
Dynamic Load Rating
163000 N
Enclosure
Open
Weight
1.900 kg
Operating Temperature Range
-40 to 120 ºC

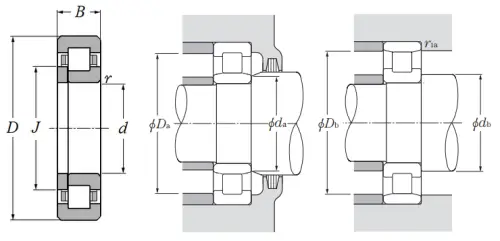

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
40.000 mm
J
71.400 mm
r
2.000 mm
da min
59.000 mm
Da max
101.000 mm
r1as max
2.000 mm
