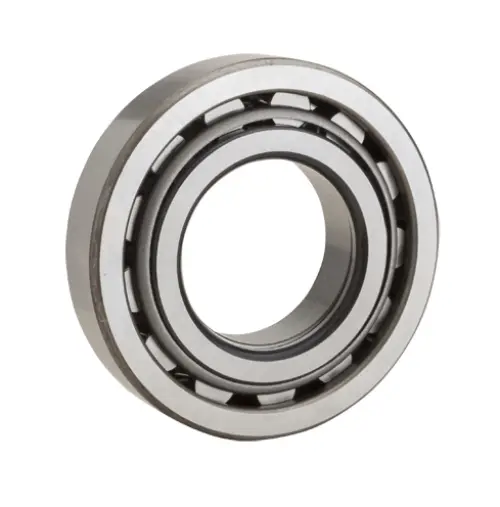

NTN NUP307E
ISO Series Single Row Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Nylon
Limiting Speed - Oil
9600 RPM
Limiting Speed - Grease
8100 RPM
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
71000 N
Dynamic Load Rating
71000 N
Enclosure
Open
Weight
0.545 kg
Operating Temperature Range
-40 to 120 ºC

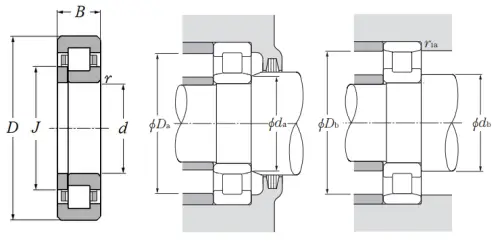

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
21.000 mm
J
51.000 mm
r
1.500 mm
da min
41.500 mm
Da max
72.000 mm
r1as max
1.500 mm
