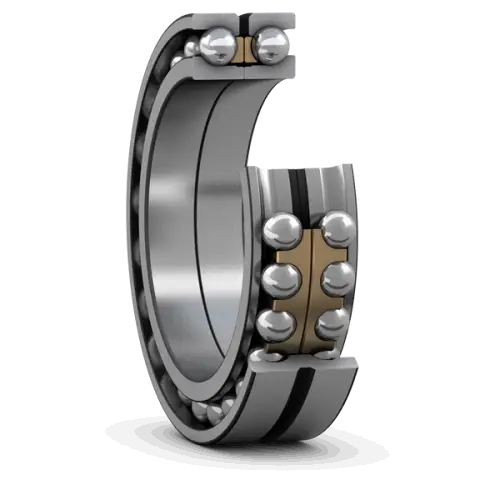

SKF 305286 D
Double row angular contact ball bearing with two-piece inner ring and relubrication feature
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
150.0 mm
Bore diameter
D
225.0 mm
Outside diameter
B
73.0 mm
Width
d1
179.7 mm
Shoulder diameter inner ring for two-piece inner ring
D1
207.0 mm
Shoulder diameter outer ring
b
5.5 mm
Width annular lubrication groove at outer ring
K
3.0 mm
Diameter lubrication hole (outer ring)
r1,2
2.0 mm
Chamfer dimension inner ring for two-piece inner ring
a
195.0 mm
Distance pressure point(s)
mass
9.75 kg
Product net weight
