SKF 305608

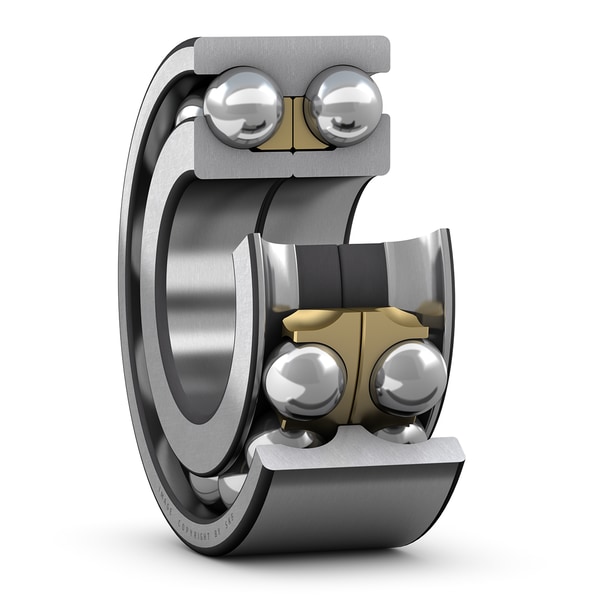

Double row angular contact ball bearing with wide and split inner ring
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
160.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
56.0 mm
Width
C
50.0 mm
Width outer ring
d1
181.0 mm
Shoulder diameter inner ring for two-piece inner ring
D1
203.1 mm
Shoulder diameter outer ring
r1,2
2.0 mm
Chamfer dimension inner ring for two-piece inner ring
a
185.0 mm
Distance pressure point(s)
mass
5.67 kg
Product net weight
