SKF 3204 A-ZTN9/MT33

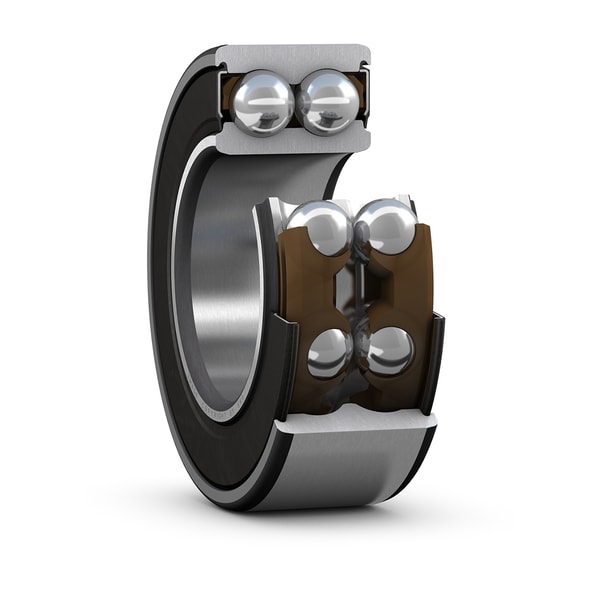

Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Bore diameter
d
20.0 mm
Outside diameter
D
47.0 mm
Width
B
20.6 mm
Recess diameter inner ring shoulder
d2
27.7 mm
Recess diameter outer ring shoulder
D2
40.9 mm
Chamfer dimension inner ring
r1,2
1.0 mm
Distance pressure point(s)
a
28.0 mm
mass
0.156 kg
Product net weight
