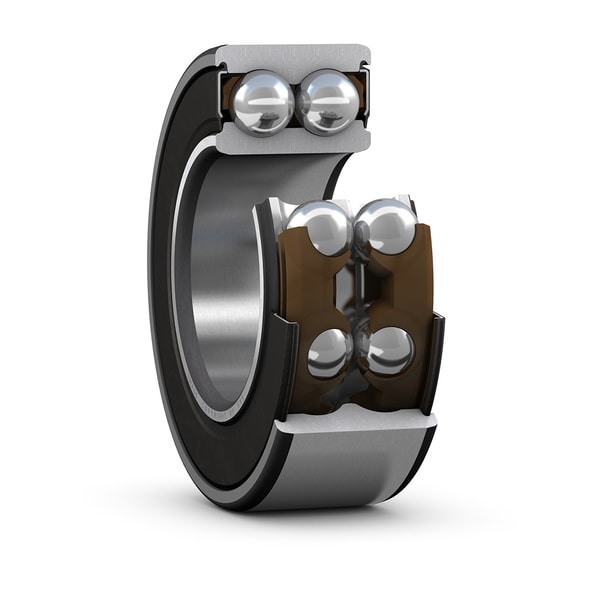

SKF 3205 A-2RS1TN9/MT33
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
25.0 mm
Bore diameter
D
52.0 mm
Outside diameter
B
20.6 mm
Width
d2
32.7 mm
Recess diameter inner ring shoulder
D2
45.9 mm
Recess diameter outer ring shoulder
r1,2
1.0 mm
Chamfer dimension inner ring
a
30.0 mm
Distance pressure point(s)
mass
0.173 kg
Product net weight
