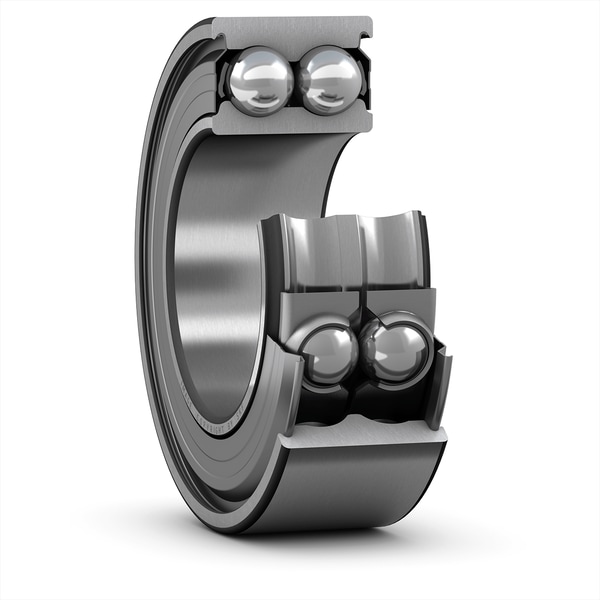

SKF 3211 A-2Z
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
55.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
33.3 mm
Width
d2
63.2 mm
Recess diameter inner ring shoulder
D2
92.3 mm
Recess diameter outer ring shoulder
r1,2
1.5 mm
Chamfer dimension inner ring
a
57.0 mm
Distance pressure point(s)
mass
0.942 kg
Product net weight
