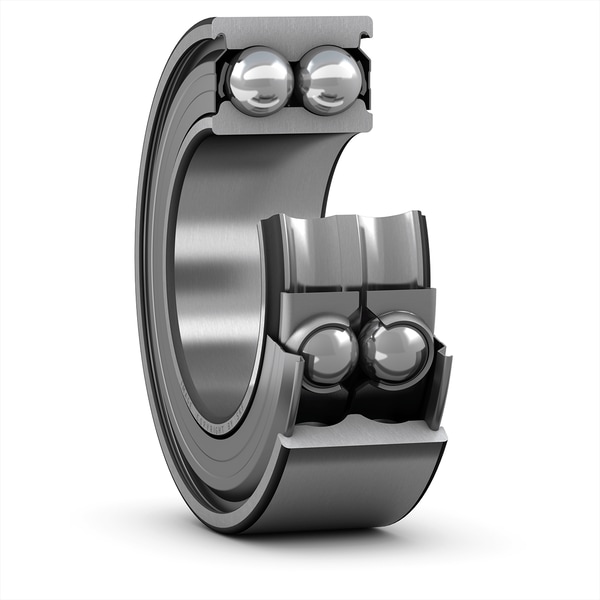

SKF 3212 A-2Z
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
60.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
36.5 mm
Width
d2
68.8 mm
Recess diameter inner ring shoulder
D2
100.5 mm
Recess diameter outer ring shoulder
r1,2
1.5 mm
Chamfer dimension inner ring
a
63.0 mm
Distance pressure point(s)
mass
1.25 kg
Product net weight
