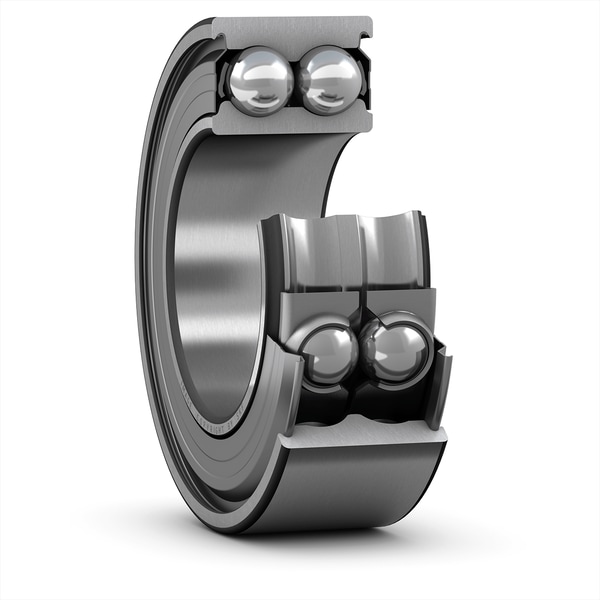

SKF 3214 A-2Z
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
125.0 mm
Outside diameter
B
39.7 mm
Width
d2
81.87 mm
Recess diameter inner ring shoulder
D2
115.4 mm
Recess diameter outer ring shoulder
r1,2
1.5 mm
Chamfer dimension inner ring
a
74.0 mm
Distance pressure point(s)
mass
1.67 kg
Product net weight
