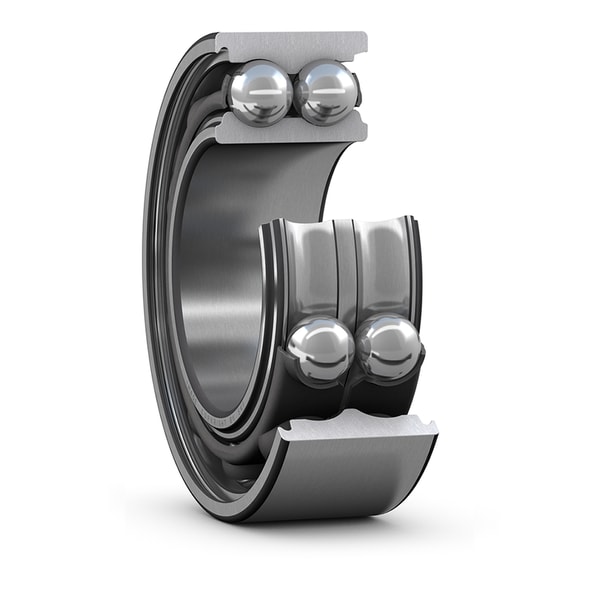

SKF 3305 A/C3S1
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
Bore diameter
d
25.0 mm
Outside diameter
D
62.0 mm
Width
B
25.4 mm
Recess diameter inner ring shoulder
d2
35.7 mm
Recess diameter outer ring shoulder
D2
53.4 mm
Chamfer dimension inner ring
r1,2
1.1 mm
Distance pressure point(s)
a
36.0 mm
mass
0.351 kg
Product net weight
