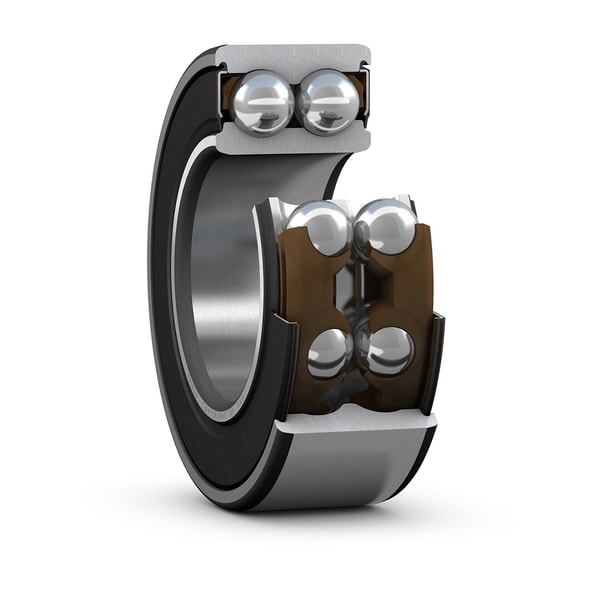

SKF 3307 A-2RS1TN9/MT33
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
34.9 mm
Width
d2
44.6 mm
Recess diameter inner ring shoulder
D2
70.5 mm
Recess diameter outer ring shoulder
r1,2
1.5 mm
Chamfer dimension inner ring
a
47.0 mm
Distance pressure point(s)
mass
0.729 kg
Product net weight
