SKF 3307 DJ1

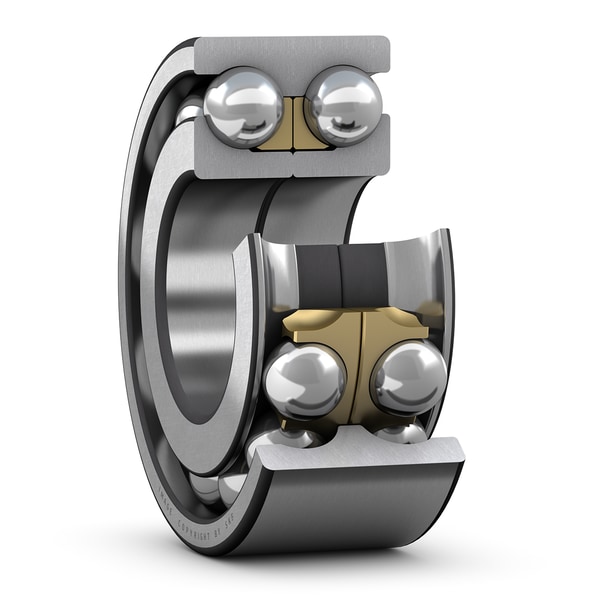

Double row angular contact ball bearing with two-piece inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
35.0 mm
Bore diameter
D
80.0 mm
Outside diameter
B
34.9 mm
Width
d1
52.8 mm
Shoulder diameter inner ring for two-piece inner ring
D1
69.0 mm
Shoulder diameter outer ring
r1,2
1.5 mm
Chamfer dimension inner ring for two-piece inner ring
a
76.0 mm
Distance pressure point(s)
mass
0.831 kg
Product net weight
