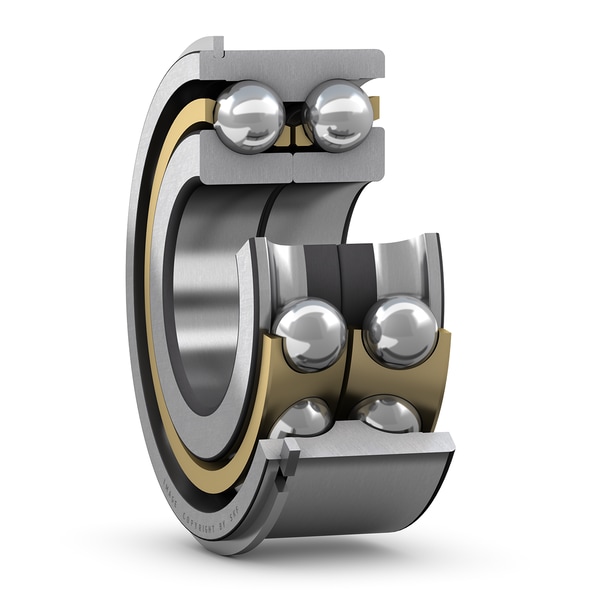

SKF 3309 DNRCBM
Double row angular contact ball bearing with snap ring and split inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
100.0 mm
Outside diameter
B
39.7 mm
Width
d1
67.95 mm
Shoulder diameter inner ring for two-piece inner ring
D1
86.53 mm
Shoulder diameter outer ring
D3
96.8 mm
Snap ring groove diameter at outer ring
D4
106.5 mm
Outside diameter snap ring
C
3.28 mm
Distance outer ring side face - snap ring groove
b
2.7 mm
Width snap ring groove outer ring
f
2.46 mm
Width snap ring
r0
0.6 mm
Snap ring groove bottom radius
r1,2
1.5 mm
Chamfer dimension inner ring for two-piece inner ring
a
79.0 mm
Distance pressure point(s)
mass
1.51 kg
Product net weight
