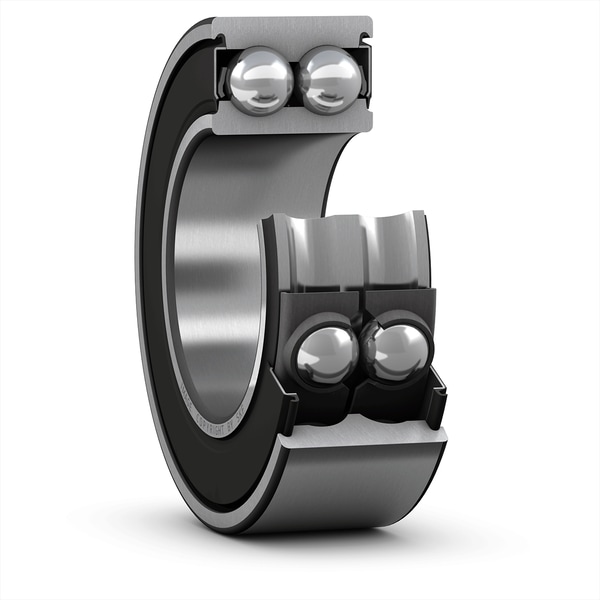

SKF 3310 A-2RS1
Double row angular contact ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
44.4 mm
Width
d2
62.0 mm
Recess diameter inner ring shoulder
D2
99.45 mm
Recess diameter outer ring shoulder
r1,2
2.0 mm
Chamfer dimension inner ring
a
65.0 mm
Distance pressure point(s)
mass
1.71 kg
Product net weight
