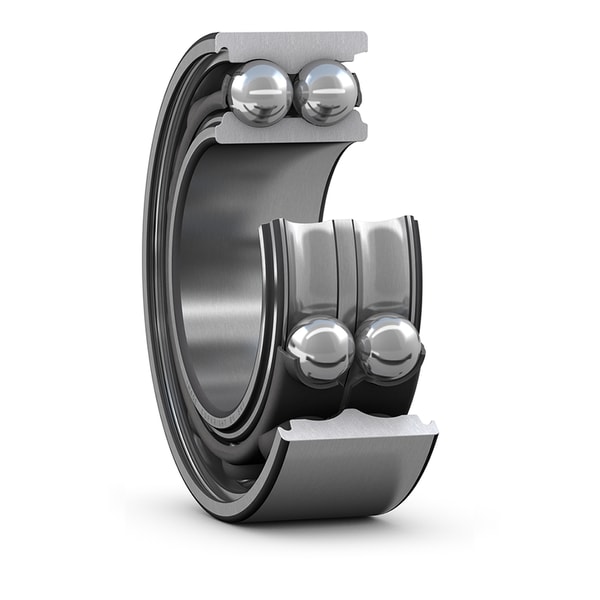

SKF 3312 A
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
60.0 mm
Bore diameter
D
130.0 mm
Outside diameter
B
54.0 mm
Width
d1
84.2 mm
Shoulder diameter inner ring
D1
110.0 mm
Shoulder diameter outer ring
r1,2
2.1 mm
Chamfer dimension inner ring
a
78.0 mm
Distance pressure point(s)
mass
2.93 kg
Product net weight
