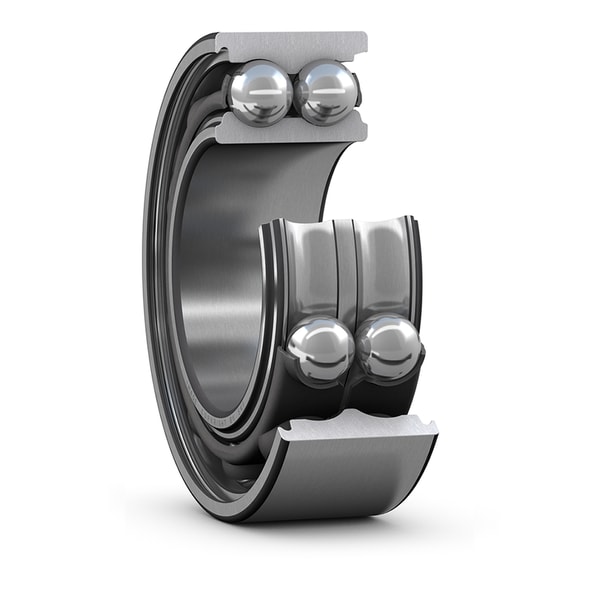

SKF 3313 A
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
58.7 mm
Width
d1
89.85 mm
Shoulder diameter inner ring
D1
115.95 mm
Shoulder diameter outer ring
r1,2
2.1 mm
Chamfer dimension inner ring
a
84.0 mm
Distance pressure point(s)
mass
3.76 kg
Product net weight
