SKF 3313 DNRCBM

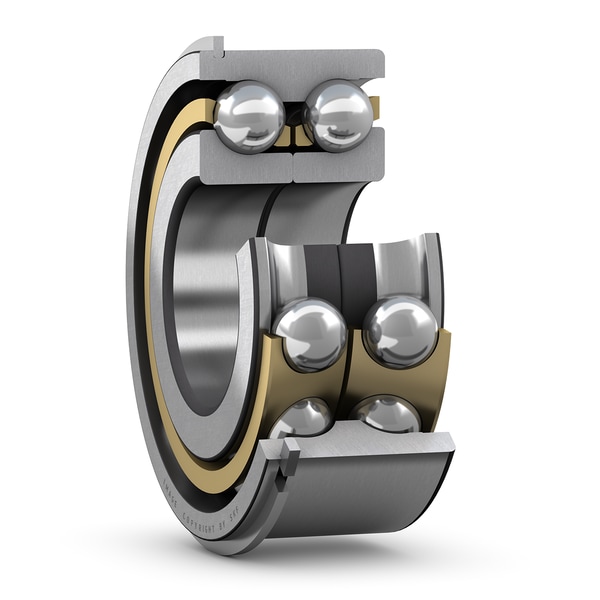

Double row angular contact ball bearing with snap ring and split inner ring
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
65.0 mm
Bore diameter
D
140.0 mm
Outside diameter
B
58.7 mm
Width
d1
95.05 mm
Shoulder diameter inner ring for two-piece inner ring
D1
124.33 mm
Shoulder diameter outer ring
D3
135.2 mm
Snap ring groove diameter at outer ring
D4
149.7 mm
Outside diameter snap ring
C
4.9 mm
Distance outer ring side face - snap ring groove
b
3.1 mm
Width snap ring groove outer ring
f
2.82 mm
Width snap ring
r0
0.6 mm
Snap ring groove bottom radius
r1,2
2.1 mm
Chamfer dimension inner ring for two-piece inner ring
a
114.0 mm
Distance pressure point(s)
mass
4.24 kg
Product net weight
