SKF 3319 A

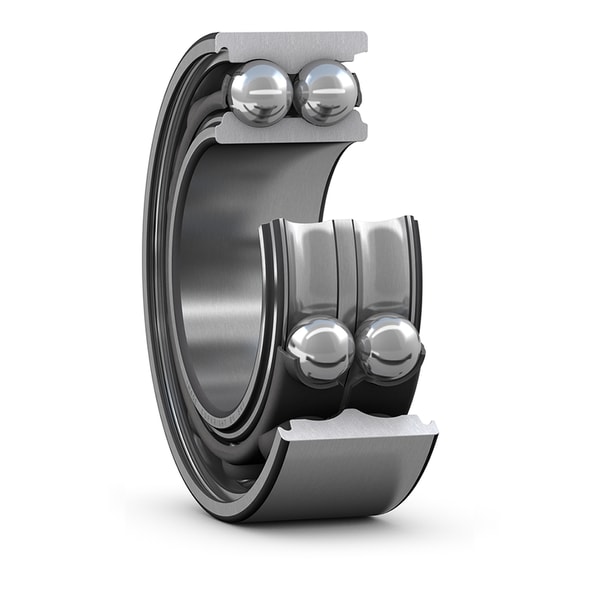

Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
95.0 mm
Bore diameter
D
200.0 mm
Outside diameter
B
77.8 mm
Width
d1
127.07 mm
Shoulder diameter inner ring
D1
175.5 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension inner ring
a
118.0 mm
Distance pressure point(s)
mass
9.66 kg
Product net weight
