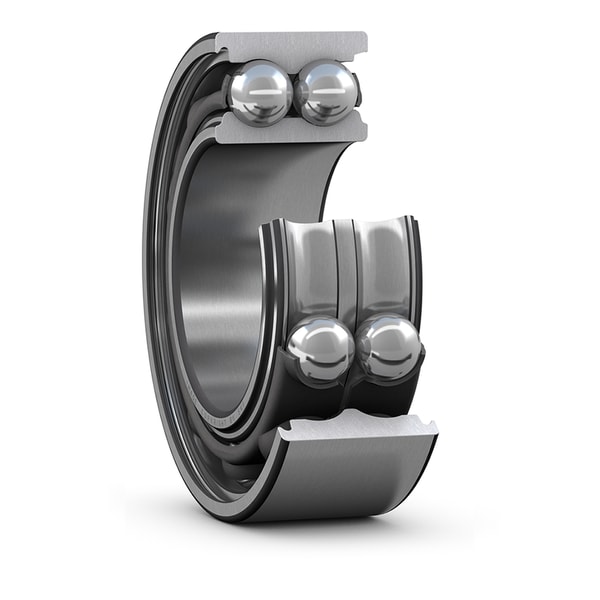

SKF 3322 A
Double row angular contact ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
110.0 mm
Bore diameter
D
240.0 mm
Outside diameter
B
92.1 mm
Width
d1
152.99 mm
Shoulder diameter inner ring
D1
200.01 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension inner ring
a
142.0 mm
Distance pressure point(s)
mass
17.5 kg
Product net weight
