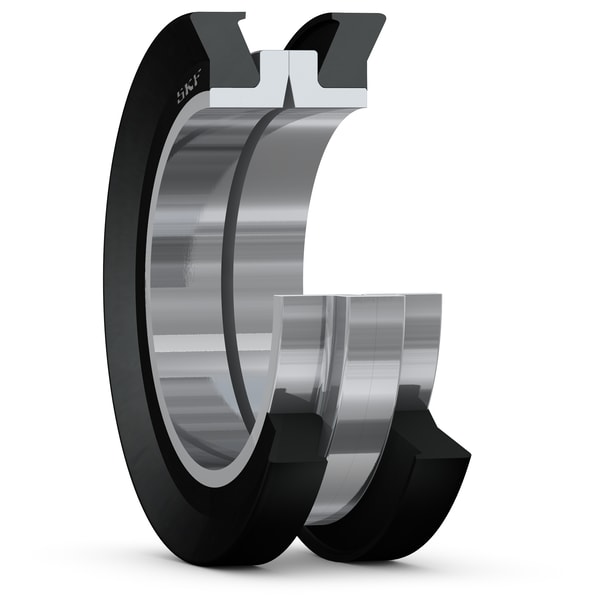

SKF 35076
Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
88.9 mm
Shaft diameter
D
125.81 mm
Housing bore diameter
B1
27.84 mm
Operating width
B
12.98 mm
Housing bore depth
d3
91.95 mm
Seal inside diameter
b
24.43 mm
Width of metal sealing rings
r
0.89 mm
Radius
mass
0.227 kg
Product net weight
