SKF 43150

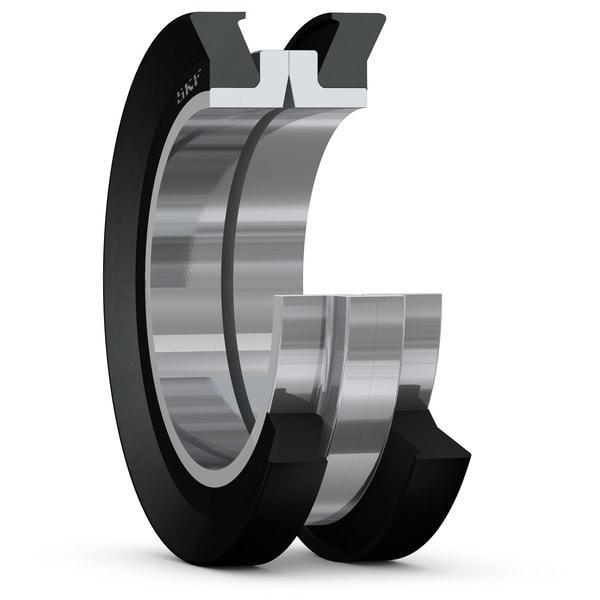

Metal face seal
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d1
109.52 mm
Shaft diameter
D
152.4 mm
Housing bore diameter
B1
33.53 mm
Operating width
B
15.88 mm
Housing bore depth
d3
112.27 mm
Seal inside diameter
b
27.69 mm
Width of metal sealing rings
r
1.3 mm
Radius
mass
0.535 kg
Product net weight
