SKF 52204

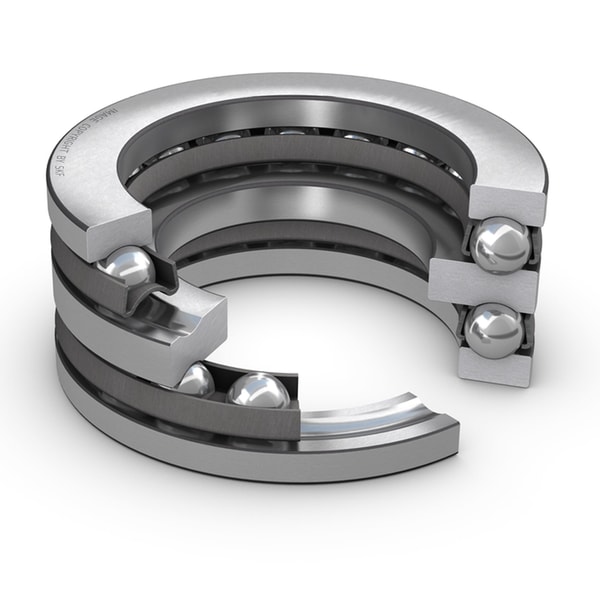

Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
15.0 mm
Bore diameter
D
40.0 mm
Outside diameter
H
26.0 mm
Height
D1
22.0 mm
Inner diameter housing washer
B
6.0 mm
Height shaft washer
r1,2
0.6 mm
Chamfer dimension housing washer
r3,4
0.3 mm
Chamfer dimension shaft washer
mass
0.15 kg
Product net weight
