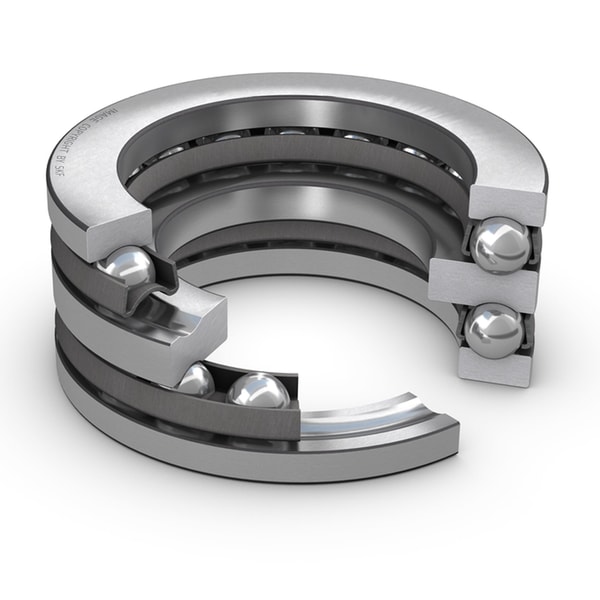

SKF 52217
Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
70.0 mm
Bore diameter
D
125.0 mm
Outside diameter
H
55.0 mm
Height
D1
88.0 mm
Inner diameter housing washer
B
12.0 mm
Height shaft washer
r1,2
1.0 mm
Chamfer dimension housing washer
r3,4
1.0 mm
Chamfer dimension shaft washer
mass
2.24 kg
Product net weight
