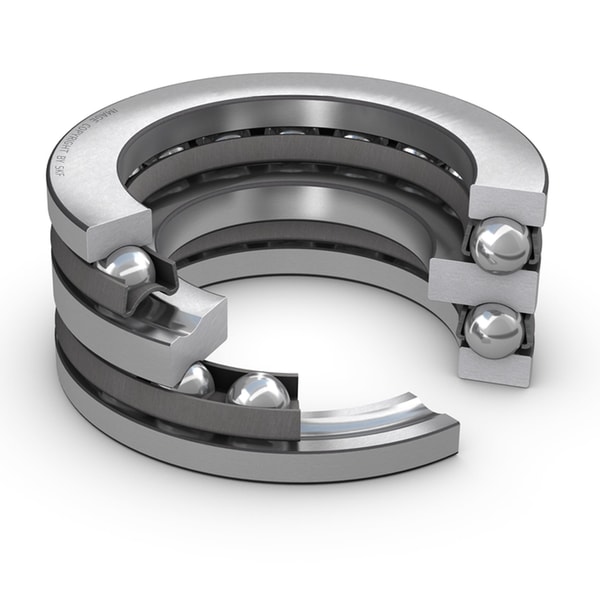

SKF 52409
Double direction thrust ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
35.0 mm
Bore diameter
D
100.0 mm
Outside diameter
H
72.0 mm
Height
D1
47.0 mm
Inner diameter housing washer
B
17.0 mm
Height shaft washer
r1,2
1.1 mm
Chamfer dimension housing washer
r3,4
0.6 mm
Chamfer dimension shaft washer
mass
2.71 kg
Product net weight
