SKF 53201

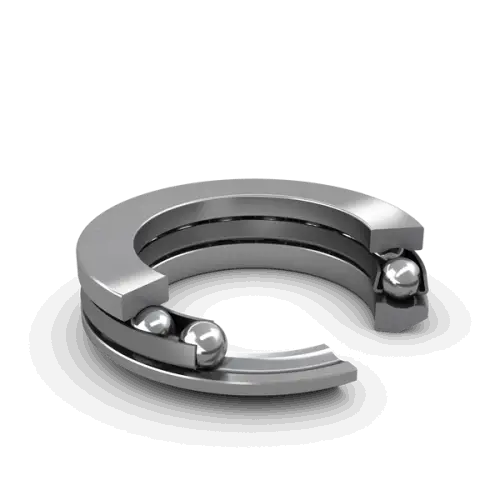

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
12.0 mm
Bore diameter
D
28.0 mm
Outside diameter
H
11.4 mm
Height
H1
13.0 mm
Height bearing including seat washer
d1
28.0 mm
Outside diameter shaft washer
D1
14.0 mm
Inner diameter housing washer
D2
20.0 mm
Inner diameter seat washer
D3
30.0 mm
Outside diameter seat washer
C
3.5 mm
Height seat washer
R
25.0 mm
Radius sphered housing washer
s
11.5 mm
Centre height housing washer sphere
r1,2
0.6 mm
Chamfer dimension washer
mass
0.031 kg
Product net weight
