SKF 53206

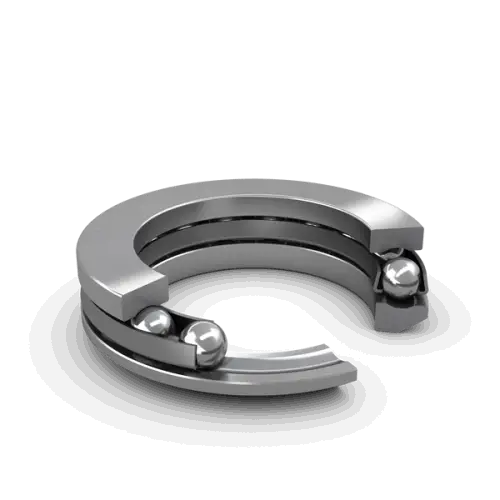

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
30.0 mm
Bore diameter
D
52.0 mm
Outside diameter
H
17.8 mm
Height
H1
20.0 mm
Height bearing including seat washer
d1
52.0 mm
Outside diameter shaft washer
D1
32.0 mm
Inner diameter housing washer
D2
42.0 mm
Inner diameter seat washer
D3
55.0 mm
Outside diameter seat washer
C
5.5 mm
Height seat washer
R
45.0 mm
Radius sphered housing washer
s
22.0 mm
Centre height housing washer sphere
r1,2
0.6 mm
Chamfer dimension washer
mass
0.14 kg
Product net weight
