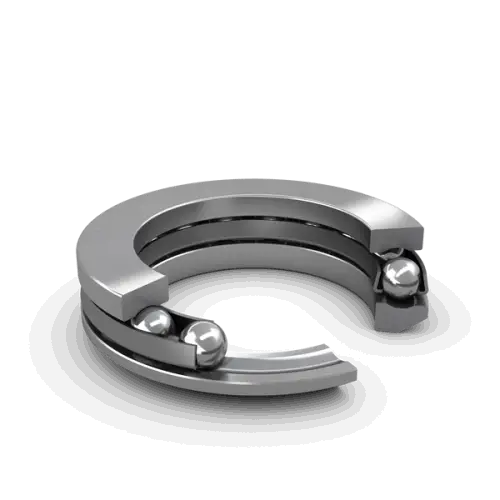

SKF 53210
Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
50.0 mm
Bore diameter
D
78.0 mm
Outside diameter
H
23.5 mm
Height
H1
26.0 mm
Height bearing including seat washer
d1
78.0 mm
Outside diameter shaft washer
D1
52.0 mm
Inner diameter housing washer
D2
62.0 mm
Inner diameter seat washer
D3
82.0 mm
Outside diameter seat washer
C
7.5 mm
Height seat washer
R
64.0 mm
Radius sphered housing washer
s
32.5 mm
Centre height housing washer sphere
r1,2
1.0 mm
Chamfer dimension washer
mass
0.353 kg
Product net weight
