SKF 53220

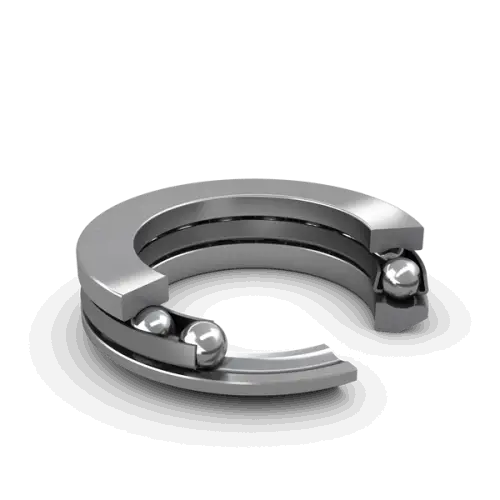

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
100.0 mm
Bore diameter
D
150.0 mm
Outside diameter
H
40.9 mm
Height
H1
45.0 mm
Height bearing including seat washer
d1
150.0 mm
Outside diameter shaft washer
D1
103.0 mm
Inner diameter housing washer
D2
125.0 mm
Inner diameter seat washer
D3
155.0 mm
Outside diameter seat washer
C
14.0 mm
Height seat washer
R
112.0 mm
Radius sphered housing washer
s
52.0 mm
Centre height housing washer sphere
r1,2
1.1 mm
Chamfer dimension washer
mass
2.14 kg
Product net weight
