SKF 53309

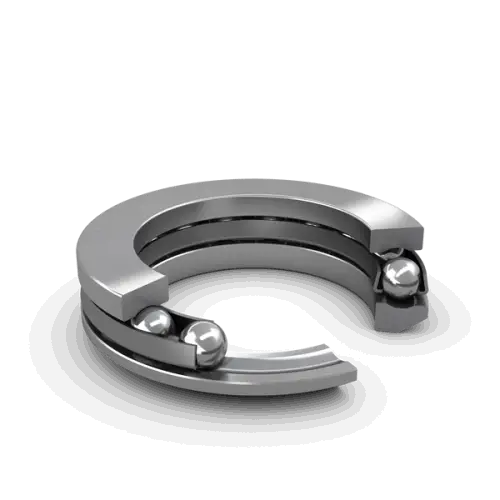

Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
Dimensions
d
45.0 mm
Bore diameter
D
85.0 mm
Outside diameter
H
30.1 mm
Height
H1
33.0 mm
Height bearing including seat washer
d1
85.0 mm
Outside diameter shaft washer
D1
47.0 mm
Inner diameter housing washer
D2
65.0 mm
Inner diameter seat washer
D3
90.0 mm
Outside diameter seat washer
C
10.0 mm
Height seat washer
R
64.0 mm
Radius sphered housing washer
s
25.0 mm
Centre height housing washer sphere
r1,2
1.0 mm
Chamfer dimension washer
mass
0.645 kg
Product net weight
