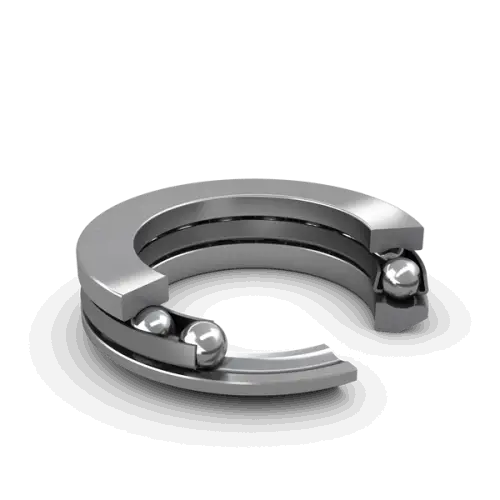

SKF 53311
Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
55.0 mm
Bore diameter
D
105.0 mm
Outside diameter
H
39.3 mm
Height
H1
42.0 mm
Height bearing including seat washer
d1
105.0 mm
Outside diameter shaft washer
D1
57.0 mm
Inner diameter housing washer
D2
80.0 mm
Inner diameter seat washer
D3
110.0 mm
Outside diameter seat washer
C
11.5 mm
Height seat washer
R
80.0 mm
Radius sphered housing washer
s
30.0 mm
Centre height housing washer sphere
r1,2
1.1 mm
Chamfer dimension washer
mass
1.36 kg
Product net weight
