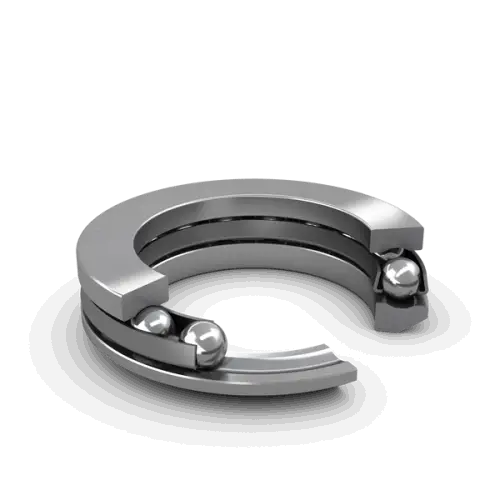

SKF 53313
Single direction thrust ball bearing with sphered housing washer
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
65.0 mm
Bore diameter
D
115.0 mm
Outside diameter
H
39.4 mm
Height
H1
43.0 mm
Height bearing including seat washer
d1
115.0 mm
Outside diameter shaft washer
D1
67.0 mm
Inner diameter housing washer
D2
90.0 mm
Inner diameter seat washer
D3
120.0 mm
Outside diameter seat washer
C
12.5 mm
Height seat washer
R
90.0 mm
Radius sphered housing washer
s
38.5 mm
Centre height housing washer sphere
r1,2
1.1 mm
Chamfer dimension washer
mass
1.48 kg
Product net weight
