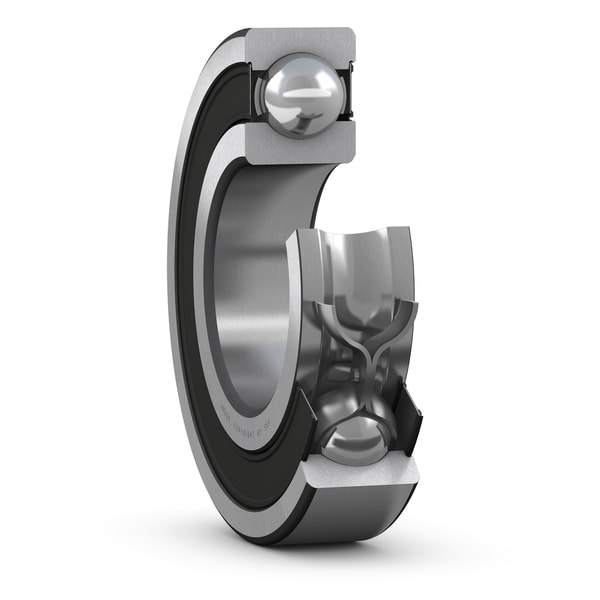

SKF 6224-2RS1
Deep groove ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
120.0 mm
Bore diameter
D
215.0 mm
Outside diameter
B
40.0 mm
Width
d2
118.1 mm
Recess diameter
D2
189.2 mm
Recess diameter
r1,2
2.1 mm
Chamfer dimension
mass
5.39 kg
Product net weight
