SKF 6226/C3VL2071

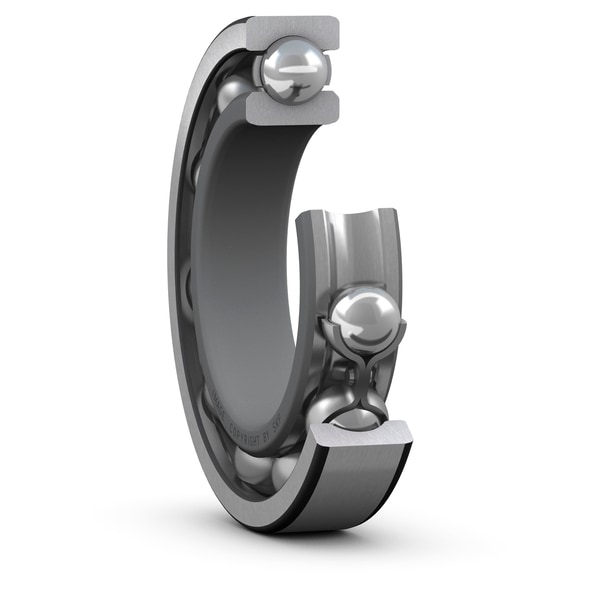

INSOCOAT® deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
130.0 mm
Bore diameter
D
230.0 mm
Outside diameter
B
40.0 mm
Width
d1
160.5 mm
Shoulder diameter inner ring
D1
197.5 mm
Shoulder diameter outer ring
r1,2
3.0 mm
Chamfer dimension
mass
5.64 kg
Product net weight
