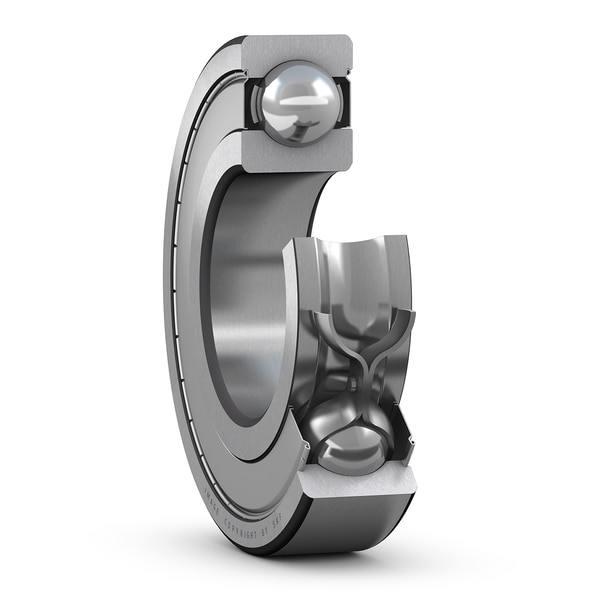

SKF 628/9-2Z
Deep groove ball bearing with seals or shields
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
9.0 mm
Bore diameter
D
17.0 mm
Outside diameter
B
5.0 mm
Width
d2
10.7 mm
Recess diameter
D2
15.2 mm
Recess diameter
r1,2
0.2 mm
Chamfer dimension
mass
0.004 kg
Product net weight
