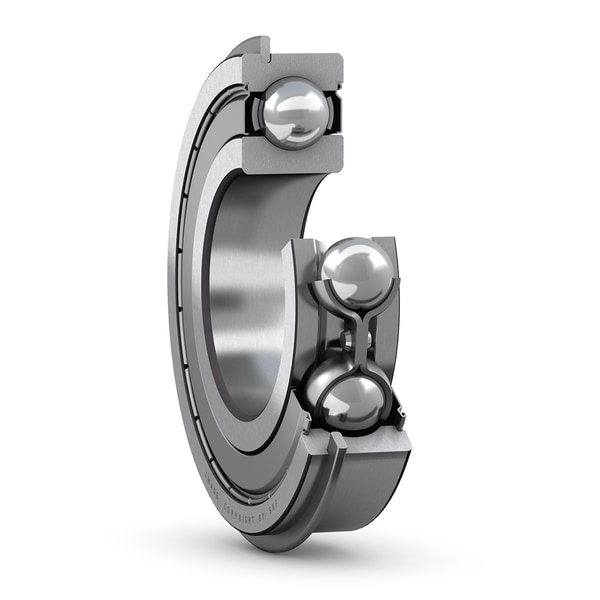

SKF 6310-2ZNR
Deep groove ball bearing with snap ring and integral sealing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
50.0 mm
Bore diameter
D
110.0 mm
Outside diameter
B
27.0 mm
Width
d1
68.76 mm
Shoulder diameter
D2
95.2 mm
Recess diameter
D3
106.81 mm
Diameter of snap ring groove
D4
116.6 mm
Outside diameter of snap ring
b
2.7 mm
Width of snap ring groove
C
3.28 mm
Distance from outer ring side face to snap ring groove
f
2.46 mm
Width of snap ring
r0
0.6 mm
Bottom radius of snap ring groove
r1,2
2.0 mm
Chamfer dimension
mass
1.11 kg
Product net weight
