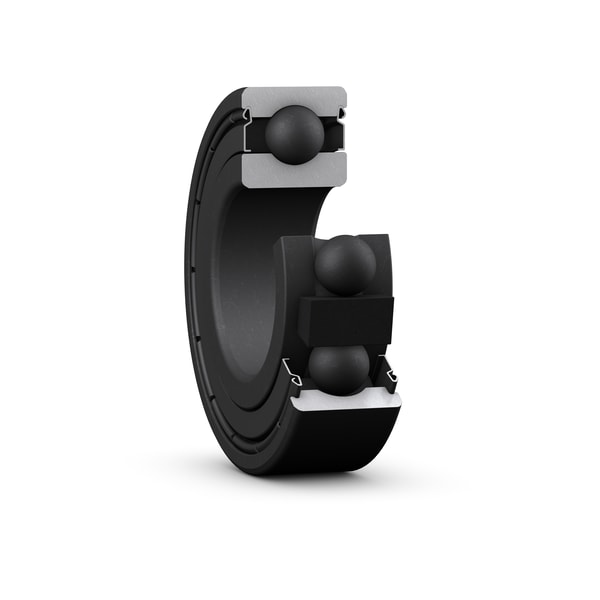

SKF 6316-2Z/VA208
Deep groove ball bearing for high temperature applications with shields on both sides
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
39.0 mm
Width
d1
108.0 mm
Shoulder diameter inner ring
D2
146.9 mm
Recess diameter outer ring shoulder
r1,2
2.1 mm
Chamfer dimension
mass
3.68 kg
Product net weight
