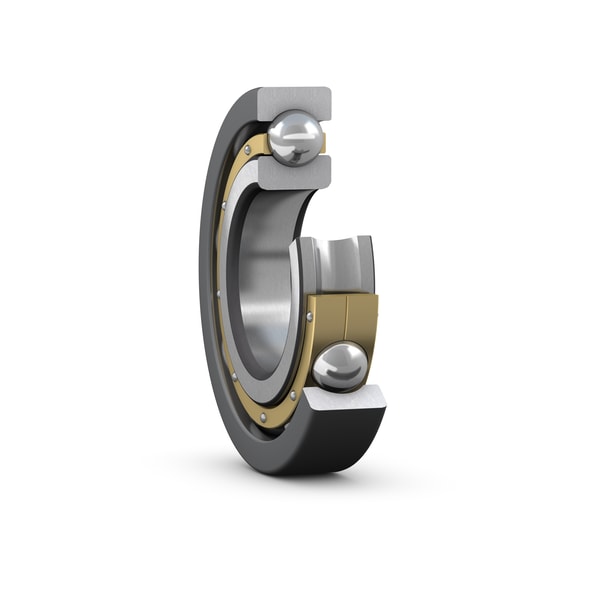

SKF 6316 M/C3VL0241
INSOCOAT® deep groove ball bearing
(BRAND)：SKF
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Dimensions
d
80.0 mm
Bore diameter
D
170.0 mm
Outside diameter
B
39.0 mm
Width
d1
108.0 mm
Shoulder diameter inner ring
D2
149.0 mm
Recess diameter outer ring shoulder
r1,2
2.1 mm
Chamfer dimension
mass
4.13 kg
Product net weight
